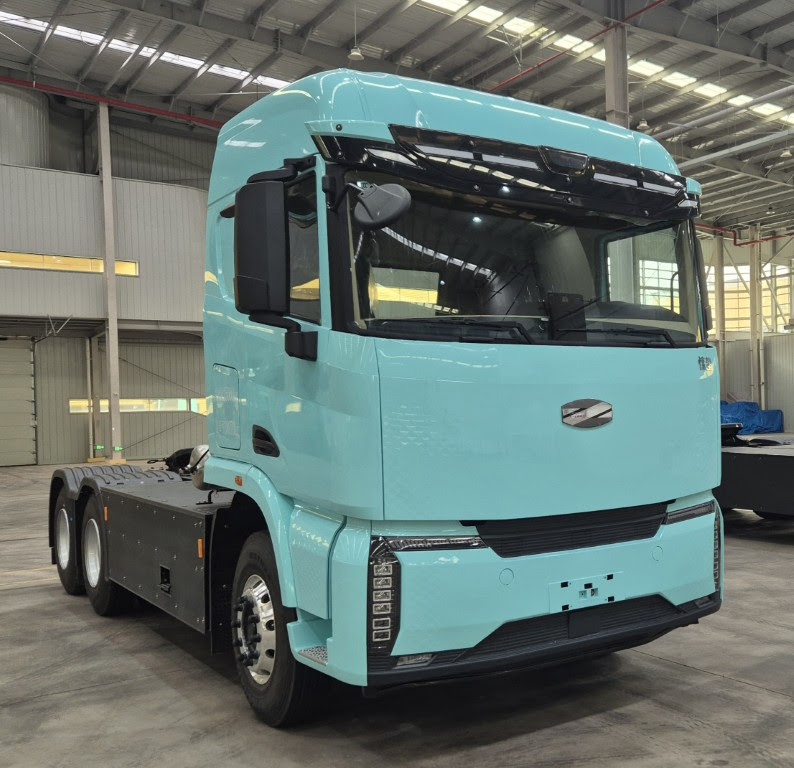

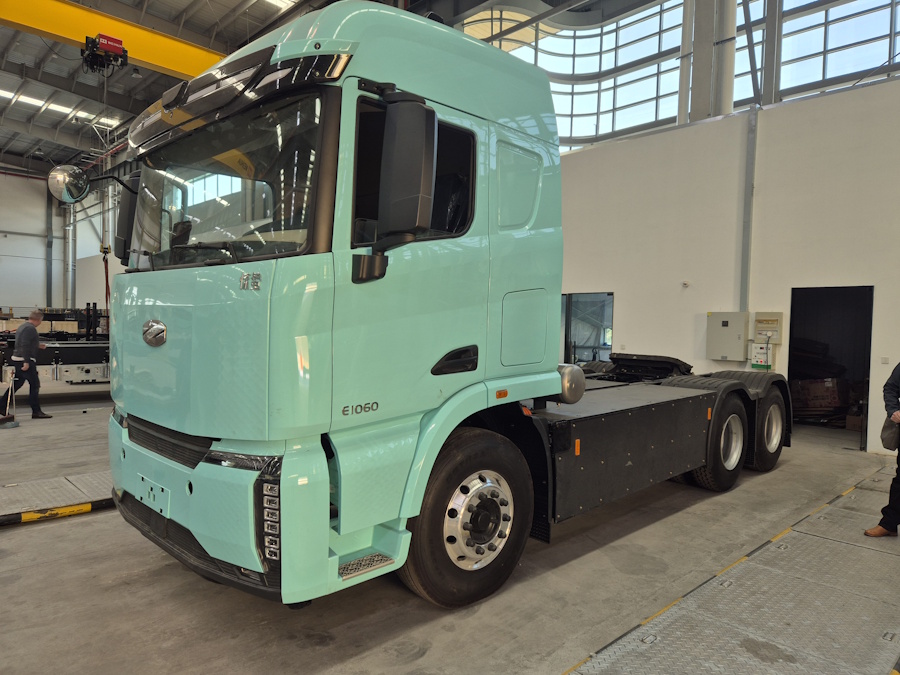

Zeron 1000hp Prime mover

  • Zeron RHD semi tractor (prime mover)
  • Jinghe S flat floor high cabin
  • 600kWh CATL LFP battery mounted on the chassis
  • 4 x CCS2 charging
  • 20% to 80% charging in 37 minutes
  • Tare 11,340kg
  • GCM 54,000 kg
  • 6×4 with sequential shifting (one axle then the other)
  • Eco mode disconnects one drive axle motor completely.

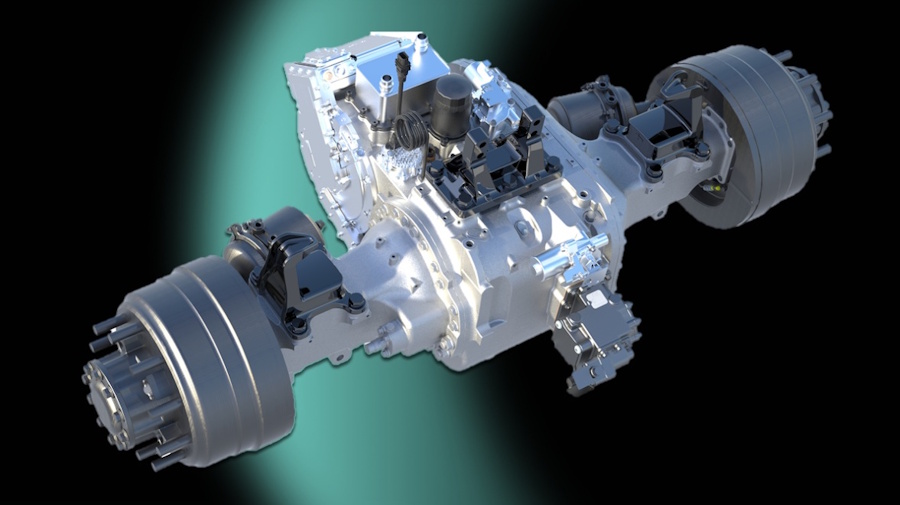

  • Oil cooled Matrix integrated axles.
  • Wheelbase 3925 + 1350mm
  • Max. Power(kw)        390+390 (1060hp)
  • Rated Power(kw)      210+210 (560hp)
  • Automatic Gearbox    3 forward gear, 1 reverse
  •  Service brake                   Kormee EBS
  •  Front axle                         7.5T disc brake
  •  Middle & Rear axle         13t + 13t, disc brake
  •  Front suspension     Leaf spring
  • Rear suspension             Airbag
  • Front tyres :                     385/55R22.5(Tentative) (SL for NZ)
  • Rear tyres :         315/80R22.5
  • Fifth wheel                       JOST 50mm
  • FCWS, LDWS, ESC
  • Intelligent brake energy recovery
  • Four direction cameras
  • Smart downhill speed control
  • EPTO off middle axle.
  • Certification to ADR
